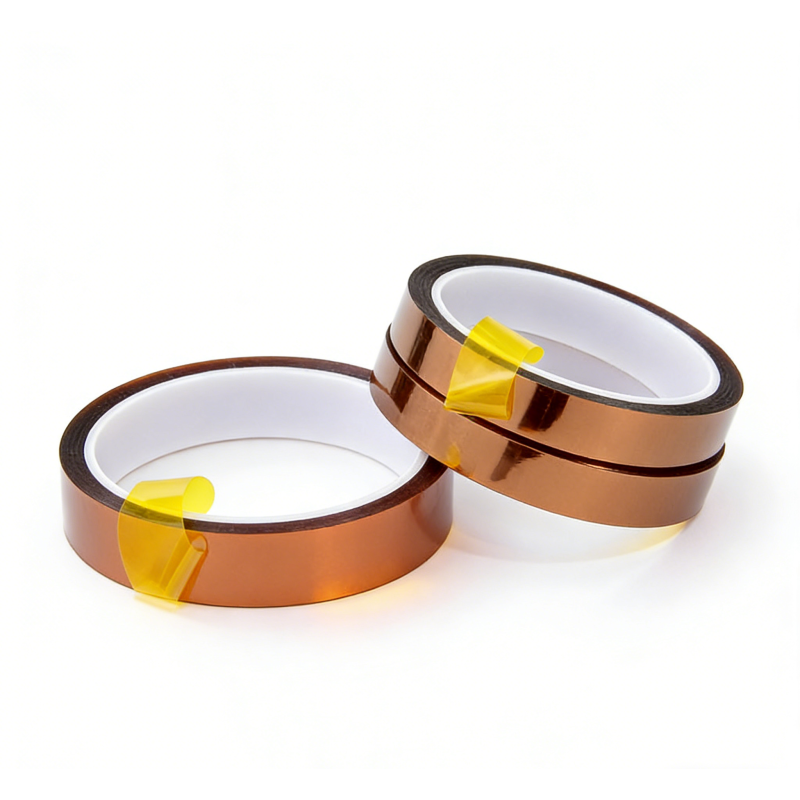

Polyimide Adhesive Tape Durable& Heat-resistant& Insulating& High-strength Adhesion

Model Number : K2321

Certification : RoHS

Place of Origin : CHINA

MOQ : 500m2

Price : based on sizes and quantity

Payment Terms : L/C,T/T

Supply Ability : 50,000m2 per month

Delivery Time : 35 working days

Packaging Details : Export carton case

Product Category : Polyimide Film Adhesive Tape

Halogen Free : Yes

Thickness : 30um~100um

Standard Roll Length : 33 meters

Base Material Thickness Options : 7.5 µm, 12.5 µm, 25 µm, and 50 µm

BDV : ≥2.0KV

Working temp. : 180℃ (long Term)

Temperature Range : -73℃ to 260℃

Tensile Strength : ≥25N/10mm

Adhesion : ≥1.8N/10mm

Features : Polyimide Film Adhesive Tape

Application : High Temperature Applications

Contact Now

Product Description

The polyimide adhesive tape is engineered for demanding applications, delivering durable high-temperature resistance, reliable insulation, and strong adhesion. It ensures secure, long-lasting bonds in environments such as PCB electrical insulation, with customizable thicknesses available to suit specific needs.

Technical Specifications

RoHS Compliant	Yes
Adhesive Type	Pressure Sensitive Silicone Adhesive
Temperature Range	-73℃ to 260℃
Adhesion Strength	≥1.8N/10mm

Key Advantages

Exceptional Thermal & Electrical Performance: Excellent high-temperature resistance and electrical insulation for demanding applications.
Outstanding Durability: High mechanical strength and strong chemical resistance ensure reliable, long-lasting protection.
Secure Bonding with Built-in Safety: Features inherent flame retardancy and reliable pressure-sensitive adhesion.
Comprehensive Capability: A balanced combination of key properties ideal for challenging industrial environments.

Primary Applications

Electronics Manufacturing: Used for PCB solder masking, FPC (flexible printed circuit) fixation, and insulation of motor and transformer coils.
Semiconductor Processing: Applied in high-precision temporary masking during etching, plating, and ion implantation stages.
Industrial & Aerospace: Suitable for high-temperature paint masking, motor insulation, and wire harness protection in demanding environments.
